Wilson Electronics 462105 3G Cell Amplifier Kit for Large Buildings

Wilson Electronics 462105 3G Cell Amplifier Kit for Large Buildings

by: WeBoost
Part# 462105
  • 2G/3G Compatible
  • Provides amplified cellular phone coverage for an entire large building
  • Includes everything you need!

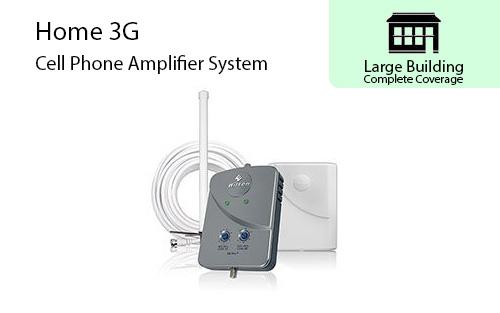

462105 image - wilson-electronics-462105-cell-amp-large-building.jpg

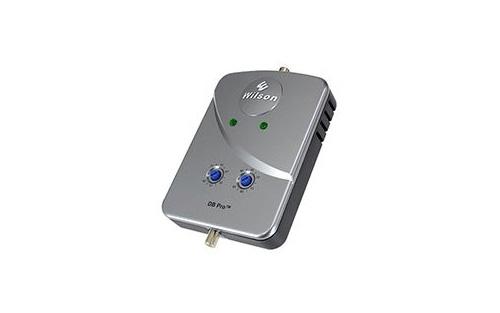

462105 image - wilson-electronics-462105-cell-amp-large-building-2.jpg
462105 image - wilson-electronics-462105-cell-amp-large-building-3.jpg

The DB Pro cellular signal booster improves coverage including 3G and 2G data downloads - for subscribers of all North American cellular networks. For specific information about frequency bands, click the specs tab above.

The DB Pro kits feature easy installation without compromising performance. Each kit features the adjustable-gain DB Pro dual-band signal booster. The adjustable gain controls allow the installer to optimize the units gain to match the requirements of the building in which its deployed.

This kit includes the omni-directional outside antenna. The inside panel antenna, which rebroadcasts the amplified cell signal inside the building, is designed for optional flush mounting in the ceiling or wall. Components are connected using standard TV (RG-6) coax cable, which is often pre-wired in buildings.

With the DB Pro, youll see fewer dropped calls, faster downloads and a stronger, more reliable cellular signal indoors.

462105 installation diagram

This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your providers consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approv3ed antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device. Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards.


FCC certified to 2014 technical specs
Boosts voice & 3G data signals for all major
North American cell carriers
U.S.-based tech support & customer service
All needed components included in package
DIY installation
Stronger cell signal indoors
Fewer dropped calls & lost connections
Faster data downloads
Clearer voice calls
Longer battery life for cellular devices

Specifications, Weight, Dimensions

Frequency Operation
850 & 1900 MHz
65 dB
Power Requirements
110-240 V AC, 50-60 Hz, 8 W
6.5 x 4.25 x 1.75 in / 16.5 x 10.7 x 4.4 cm
0.47 lbs / 0.21 kg (Signal Booster Only)
