Stryker SR-955HPC+ Specifications | ||||
---|---|---|---|---|
Dimensions (W x H x D) | 7-7/8" x 2-3/8" x 9-1/4" | |||
Frequency Range | 28.000-29.700 MHz & 24.890 – 24.990 | |||
Frequency Bands | 1/2/3/4/5/6/7/8/9/10 & VFO | |||
Channels | 40 channels (programmable) in each band | |||
Input Voltage | 13.8V (14.2 recommended) | |||
Antenna Connector | UHF SO239 | |||
Frequency Control | Phase-Locked-Loop Synthesizer | |||
Frequency Step | 100Hz/1KHz/10KHz/100KHz/1MHz | |||
Frequency Tolerance | 0.005% | |||
Frequency Stability | 0.001% | |||
Temperature Range | -4F - 122F (20c + 50c) | |||
- Transmitter Specifications - | ||||
Power Output | AM 1-20 W 100+ W PEP | FM 45 W | SSB 100+ W PEP | |||
Current Drain | 12A | |||
Unwanted Sideband | 50dB | |||
Frequency Response | AM/FM 300 - 4000Hz | SSB 450 - 2500Hz | |||
Output Impedance | 50 ohms, unbalanced | |||
Modulation | AM / FM / SSB | |||
- Receiver Specifications - | ||||
AM / FM | 10.695 MHZ; 455 kHz | |||
SSB | 10.695 MHz | |||
RF Gain Control | 45dB for optimum signal reception | |||
Automatic Gain Control | Less than 10 dB change from 10 to 100,000 MV | |||
Squelch Adjustment | Threshold less than 1.0 µV | |||
Automatic Squelch Control (Only AM / FM) | 300 to 3000 Hz; SSB 450 to 2500 Hz | |||
Built-in Speaker | 8 Ohms; Round | |||
External Speaker Jack Sensitivity | SSB 0.25 µV for 10 dB | AM 1.0 µV for 10 dB | FM | 1.0 µV for 20 dB | ||
Adjacent-Channel Selectivity | AM / FM / SSB 70 dB | |||
Image Rejection | More than 65 dB | |||

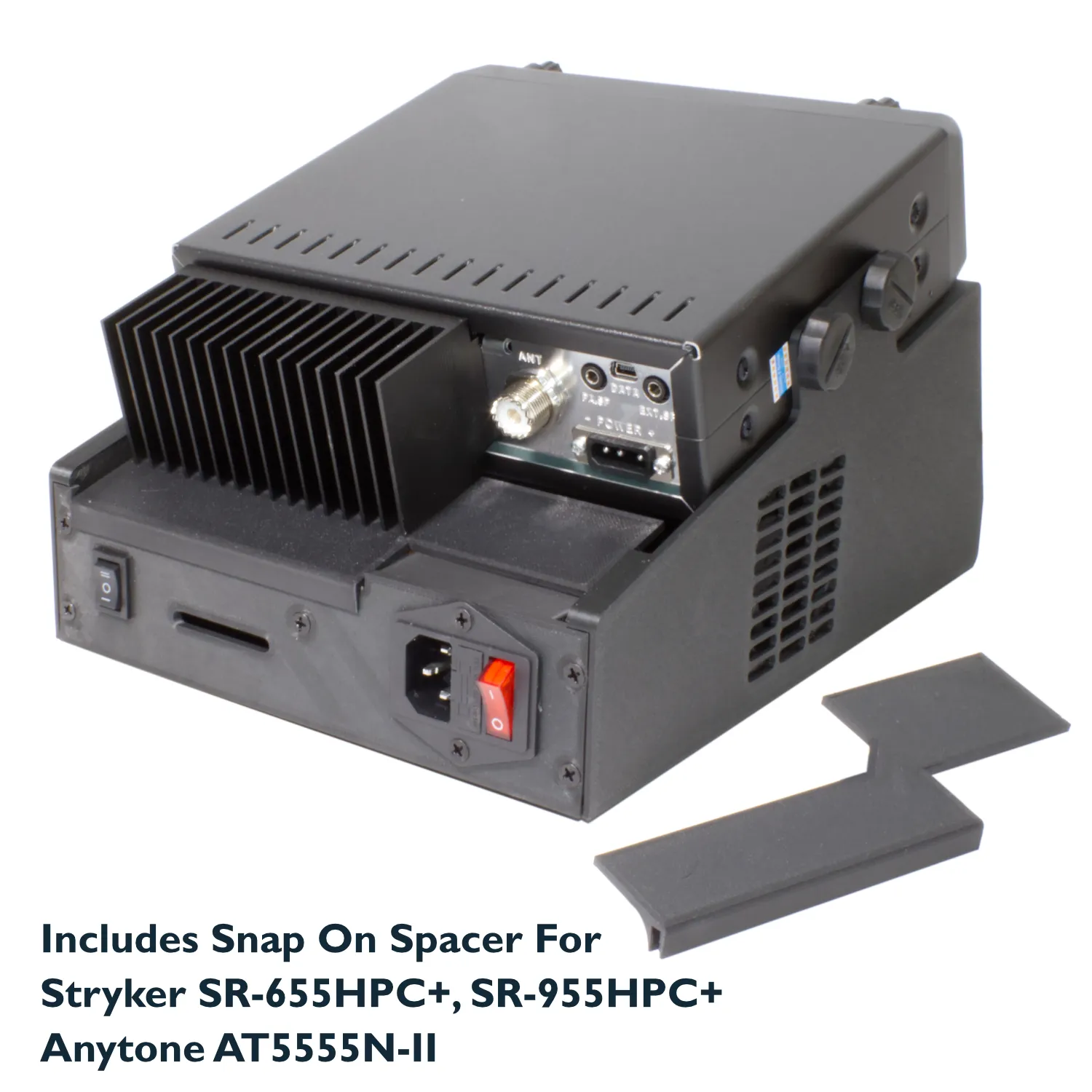

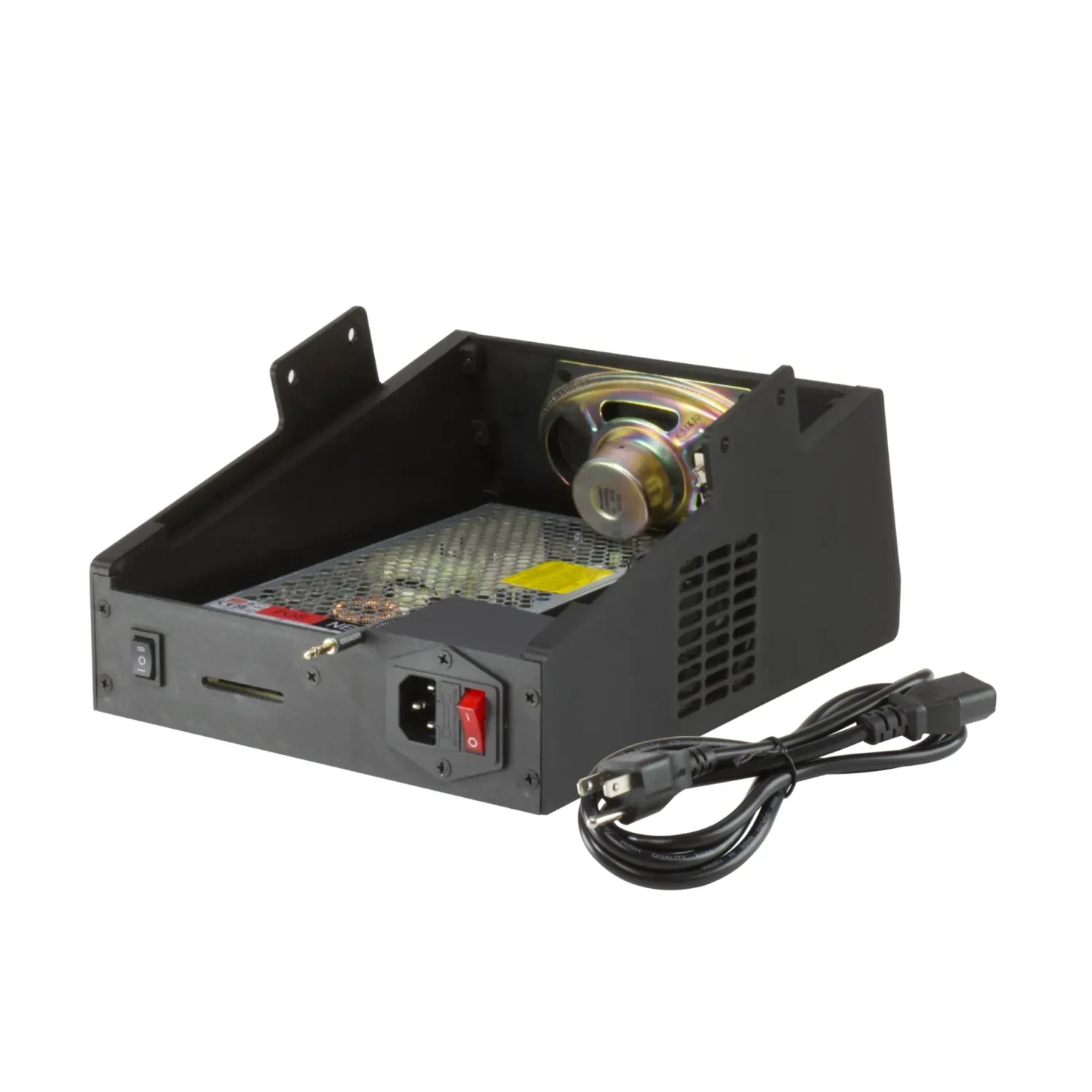

K-621 Base Conversion Kit | ||||
Dimensions | Length | 10.47" (266mm) x Width | 8.18" (208mm) x Height | 4.58" (116.4mm) |

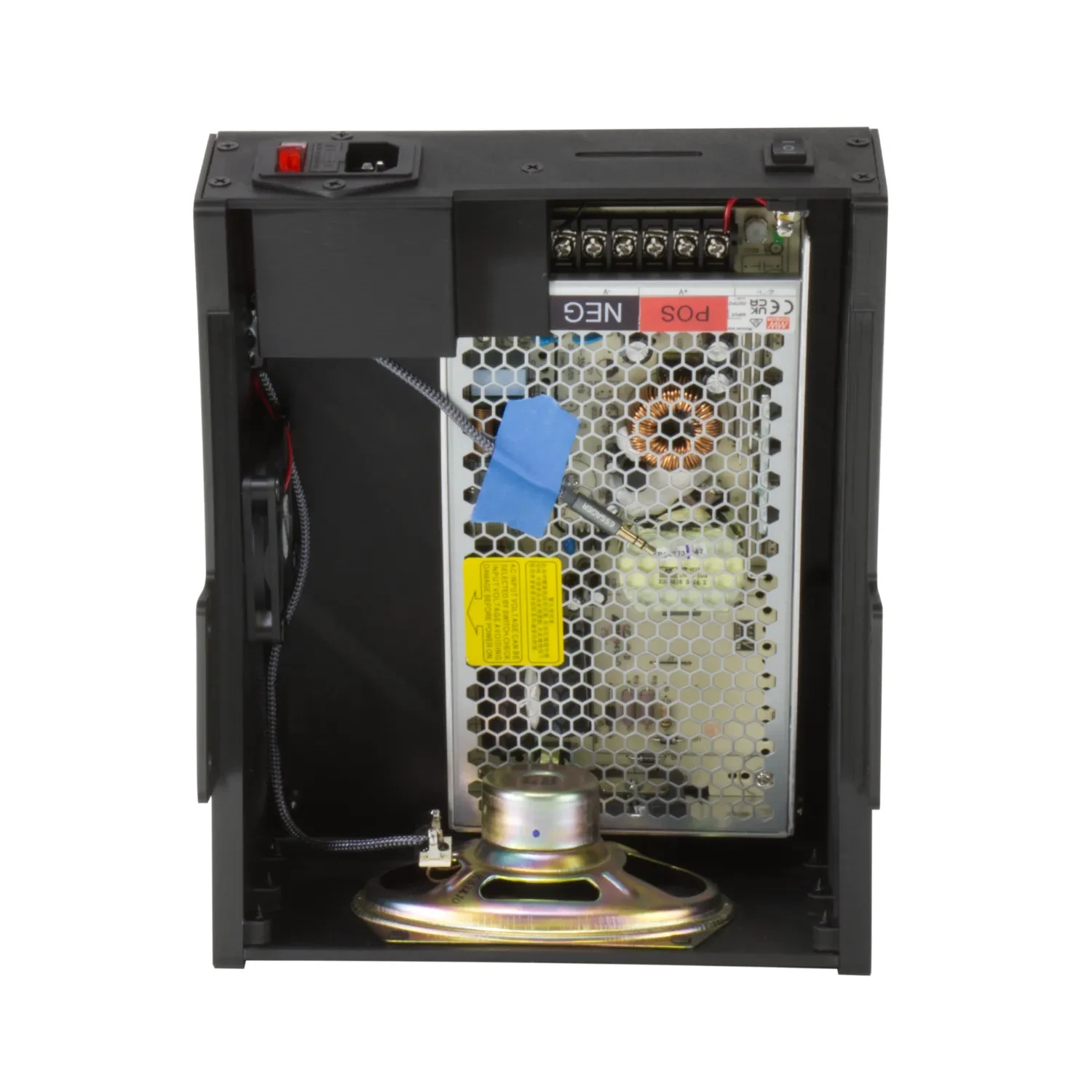

- Power Supply - | ||||
DC Voltage | 12V (Adjusted to 14.1V) | |||
Rated Current | 17A | |||
Rated Power | 204W | |||
Protection | Overload, Voltage, and Temperature Protection | |||
- Speaker - | ||||
Size | 3" x 5" | |||
Power Handling | 4W RMS | 8W Max | |||
Impedance | 8Ω | |||
Frequency Response | 150 - 15.000 Hz | |||
- Housing - | ||||
Material | PLA (Polylactic Acid) | |||
Temperature Range | 0°F - 120° F | |||
Humidity | 20-90% Non-condensing | |||
Solarcon A-99 | ||||
Length | 18ft | |||
Power Handling | 2000 Watts | |||
Wavelength | 1/2 Wave | |||
Gain | 3.2dBI | |||
Frequency Coverage | 10 Meter & 11 Meter (CB) | |||
Mounting | 2 U-Bolts | |||
Coax Cable - RG8U/B | ||||
Center Conductor | #13 Gauge (7x21) Stranded Bare Copper | |||
Insulator | Solid Polyethylene .146 | |||
Outer Shield | Stranded Bare Copper Braid | |||
Shielding | 95% | |||
Impedance | 50 Ohm | |||
Inductance | .079 H/ft | |||
Velocity Factor | 66% | |||
Conductor DC Resistance | @ 20 Deg. C | |||
Outer Shield DC Resistance | @ 20 Deg.C | |||
Insulation Diameter | .285 In. | |||
Outer Jacket Material | PVC - Polyvinyl Chloride | |||
Overall Nominal Diameter | .405 In. | |||
Operating Temperature Range | -40C to +75C | |||
Power Handling @ 28 Mhz | 1500 Watts |
