Ranger RCI2970N2 200w 10-12 Meter Radio w. Sideband (USB/LSB/CW)

Ranger RCI2970N2 200w 10-12 Meter Radio w. Sideband (USB/LSB/CW)

5/5 based on 2 Reviews by: Ranger
  • 200+ Watt PeP Output Power
  • 10-12 Meter Amateur Radio
  • Single Sideband SSB (USB/LSB) Modes
  • 2 Year MFG Warranty
  • VFO Control
  • 6-Pin Channel Changing Microphone
RCI2970N2 image - RANGER-RCI-2970N2-0.jpg

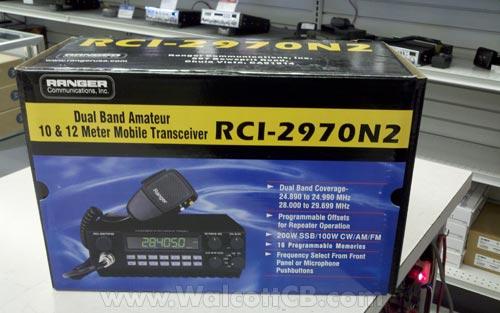

RCI2970N2 image - RANGER_RCI_2970N2_2.jpg

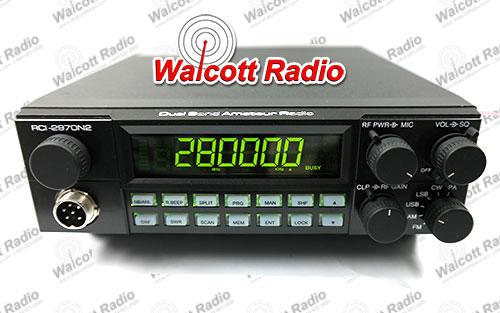

RCI2970N2 image - RANGER-RCI-2970N2-1.jpg

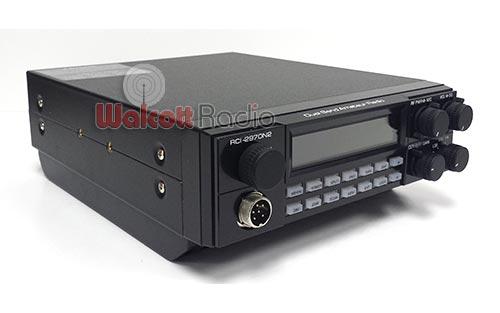

RCI2970N2 image - ranger_rci_2970_n2_side.jpg

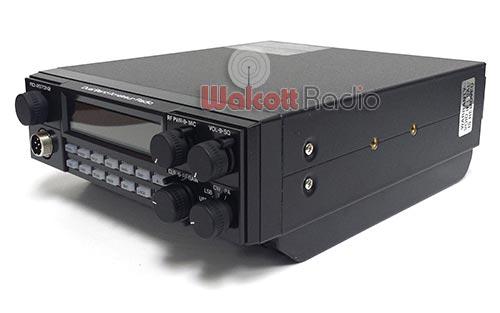

RCI2970N2 image - ranger_rci_2970_n2_side2.jpg

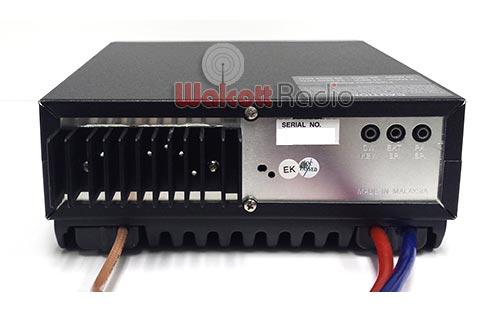

RCI2970N2 image - ranger_rci_2970_n2_back.jpg

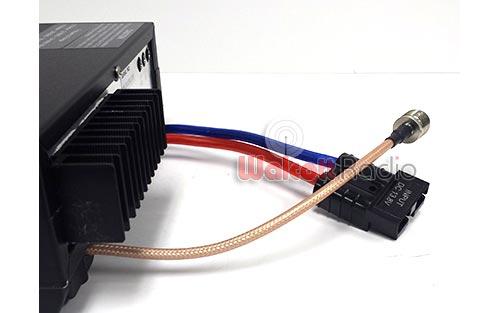

RCI2970N2 image - ranger_rci_2970_n2_power_cord.jpg
RCI2970N2 image - RANGER-RCI-2970N2-2.jpg
RCI2970N2 image - RANGER-RCI-2970N2-3.jpg
RCI2970N2 image - RANGER-RCI-2950-DX3-6.jpg
$427.45

ON SALE! Was: $449.95 Save: $22.50

In Stock

ADD TO CART
Loading suggested items...
Loading ...

Ranger Communications once again sets the performance and reliability standard for entry level amateur mobile transceivers with the latest generation of our popular RCI-2950/70 series of cost effective, multi mode, high performance transceivers.

Introducing the new RCI-2950 & RCI-2970N2. These new models feature microprocessor control of not one but two amateur bands. The new RCI-2950, rated at 25W PEP and the RCI-2970N2, rated at 200W PEP are perfect for the recent band openings on 10 and 12 meters. Now you can upgrade your mobile Ham capabilities with a radio that is rich in features and reasonable in cost.

Always a popular single sideband radio, the new models have retained the operating features of its popular predecessors, including programmable repeater offset and capabilities for a CTCSS tone option great for increasing repeater activity on 10 meters and receiver scanning for quick search of active frequencies. The units offer three methods of frequency selection, non-volatile memory to store and scan up to ten favorite frequencies, and front panel frequency selector lockout.

Due to uncertainties of your antenna system. Output transistors (finals) are not covered under our warranty.

Features

Modes
AM/FM/USB/LSB/CW
An improved receiver
Designed for increased sensitivity and image rejections.
A double FET balanced mixer
For improved receiver intermodulation rejection.
New power supply protection and temperature compensation
For improved stability and reliability over wide temperature ranges.
Surface mount components
For increased resistance to shock and vibration.
Improved display lighting
For easy reading in a wide range of light conditions.
Variable power output control
Adjusts your deadkey power.
10 and 12 Meter Bands
Allows you to recieve and transmit on these popular amateur frequency bands.
Receiver Clarifier
Allows you to adjust your recieve frequency.
Noise Blanker/ Automatic Noise Limiter
Reduces extra static and recieve noise.
Programmable repeater offset
Allows you to offset your frequency for FM repeator use.
Large green backlite frequency display with dimmer.
Active frequency scanner
Scans through to find active frequencies.
Ten programmable frequencies
Program in your most monitored frequencies for easy access.
200 Watt Peak Power.
Bottom and rear heatsinks
Disperses extra heat away from internal components.
2 year manufacturer warranty.

Specifications, Weight, Dimensions

Power Output
200+ Watts PeP
Modes
AM / FM / CW / USB / LSB
Frequency Range
10 Meter 28~29 MHz & 12 Meter 25~26 MHz
Length
10 1/8" from SO-239 to bezel
Length
11 1/8" from SO-239 to control knobs
Width
7 7/8"
Height
2 7/8"
Current Draw
40 Amp
Fuse Size
50 Amp
Microphone Pin-Out
6-Pin RCI
Power Connection
2-Pin Heavy Duty

What's Included

  • 6-Pin Dynamic Microphone
  • 6-pin two-wire power cord
  • Mounting Hardware
  • Owners Manual
