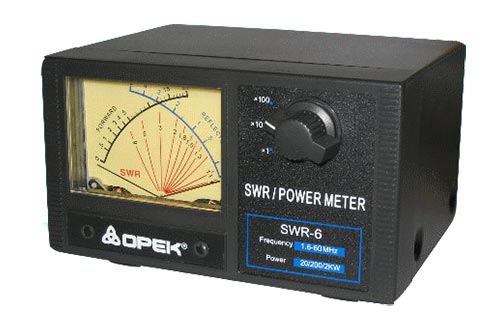

The OPEK SWR6L is a compact SWR and Power meter product designed for operation in the HF band, including CB Radios. The LED illuminated display makes for convenient night-time usage. Accurate within 5%.
The OPEK SWR-6L is a compact SWR and Power meter designed for operation in the HF band, including CB Radios. LED illuminated display makes for convenient night-time usage. Accurate within 5%. The large cross-needle display is easy to see and use. Does not read modulation.
SWR-6L Technical Specifications
Frequency | 1.6 - 60 MHz (HF/VHF)
|
---|
Impedance | 50 OHM
|
---|
Power Range | 0-2 KW
|
---|
Power Scale | 20/200/2K W
|
---|
Max. Power | 2K W
|
---|
Accuracy LOW(x1) Range | (AVG.) ±10%; ±15% or better
|
---|
Accuracy HIGH(x10; x100) Range | (AVG.) ±5%; ±10% or better
|
---|
Min. Power (Fwd.) Measure | 1W
|
---|
Insertion Loss | Less than 0.1dB
|
---|
Tolerance | 10% full scale
|
---|
Connection | UHF Female/M Type(SO-239); N type connector is optional
|
---|
Test Function | Fwd/Rev Power; SWR
|
---|
Dimensions | 140(W) x 84(H) x 122(D) mm
|
---|
Weight | 600g (1.32277 lbs) |
---|
