Galaxy DX2547 CB Base Radio AM / Single Side Band - SSB

Galaxy DX2547

X
Hassle-Free Warranty & Easy Returns

At Walcott Radio, we want you to shop with confidence! That's why we offer a straightforward warranty and a stress-free return policy to ensure you're satisfied with your purchase.

Easy Returns - No Worries!

  • Changed your mind? No problem! Return unused, unopened, and unmodified products within 30 days for a refund.
  • Some items like batteries, used/refurbished products, and custom modifications are non-refundable.

Reliable Warranty - We've Got You Covered

  • Enjoy 90 days of coverage against manufacturer defects.
  • If something isn't right, we'll help troubleshoot, and if needed, we will arrange for inspection, repair, or replacement

Customer-Focused Support

  • Need Help? Our experts are just a phone call or email away!
  • We work hard to make sure every product performs at its best - because we care about your experience.

For full details, check out our Warranty & Return Policy

X
CB Radio Technicians since 1986

Unlock the full potential of your radio with our in-house radio technican upgrade services. Don't leave any potential for performance on the table, and ensure your new radio equipment has been thoroughly tested and verified to operate at it's maximum potential.

Improved Range & Clarity

Expert Calibration for Peak Performance

Optimized for Ehanced Usability

Speak directly with the radio Technician for any operation quests

Walcott Radio 30-Day Hassle-Free Returns
In Stock
6 Ratings
was $684.95
$459.95
Save $225.00 (33%)
Shop all Galaxy products

DX2547 - One Of The Last Base Radios Available! This one has it all. AM & SSB modes, Built-In SWR meter. Can be operated on 12 volts mobile power with optional power cord.

Product Highlights
  • Updated Fall 2024 - Now with metal support prop instead of plastic legs
  • Base Station or Mobile CB Use at home or in a car
  • AM And Single Sideband Modes (USB / LSB)
  • 5-Digit Frequency Display
  • Headphone Jack
View all features
Walcott Radio 30-Day Hassle-Free Returns
Return info
Get it quick! Most orders arrive in 2-3 days
Free Phone Support
844-925-2688 9-5 Mon-Fri

Customers Also Purchased

?
Boost your radios power up 50% or more.
$4000
Boost Your Galaxy DX2547 Power Up 50% Or More. NOTE: This can cause the internal SWR meter to not produce valid r...
?
Astatic AST878DM Amplified Base Station Desk Microphone
$119.95
$8995

Buy Together and Save $30.00

Astatic Base Station Amplified Desk Microphone Easy to use Push-To-Talk Bar that can be locked in the on position...
?
Astatic D104M6B Power Microphone
$59.95
$4796

Buy Together and Save $11.99

Designed After The Classic D104 "Lollipop" Style Microphone, The D104M6B Gives Your Radio PUNCH POWER! Improves t...
?
Opek SWR-9 Digital SWR / Watt Meter
$229.95
$19999

Buy Together and Save $29.96

Opek SWR-9 Digital SWR / Watt Meter
?
Firestik IBA5 Indoor CB Base Station Antenna
$99.95
$8995

Buy Together and Save $10.00

Firestik IBA5 Indoor CB Base Station Antenna
?
Solarcon Antron A-99 CB Radio Home Base Station Antenna
$13995
Solarcon A-99 Is Proven Performance For Many Years. EZ up and install. Pre-tuned and tuneable.
?

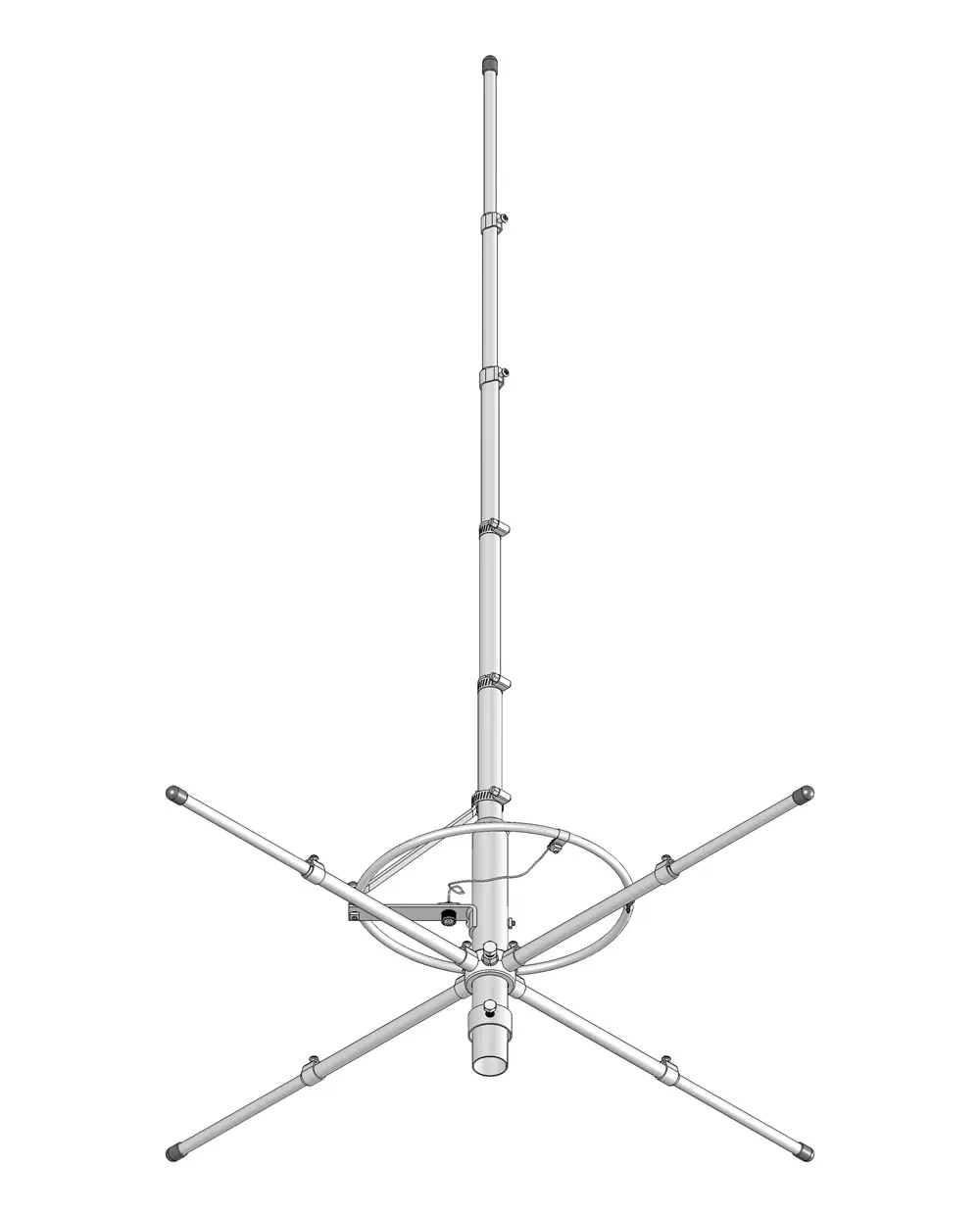

MaCo V58 Base Station Antenna
$16200
MaCo V58 Base Station Antenna
?
75\' RG8UB75 Base Station Coax Cable
$14495
75' RG8UB75 Base Station Coax Cable
?
100\' RG8UB100 Base Station Coax Cable
$18995
100' RG8UB100 Base Station Coax Cable
See More ▽
Get Expert Help and Assistance
from people who have hands-on knowledge
📞 1-844-925-2688
M-F 10am to 5pm CST
  • Description

DX2547 - One Of The Last Base Radios Available! This one has it all. AM & SSB modes, Built-In SWR meter. Can be operated on 12 volts mobile power with optional power cord.

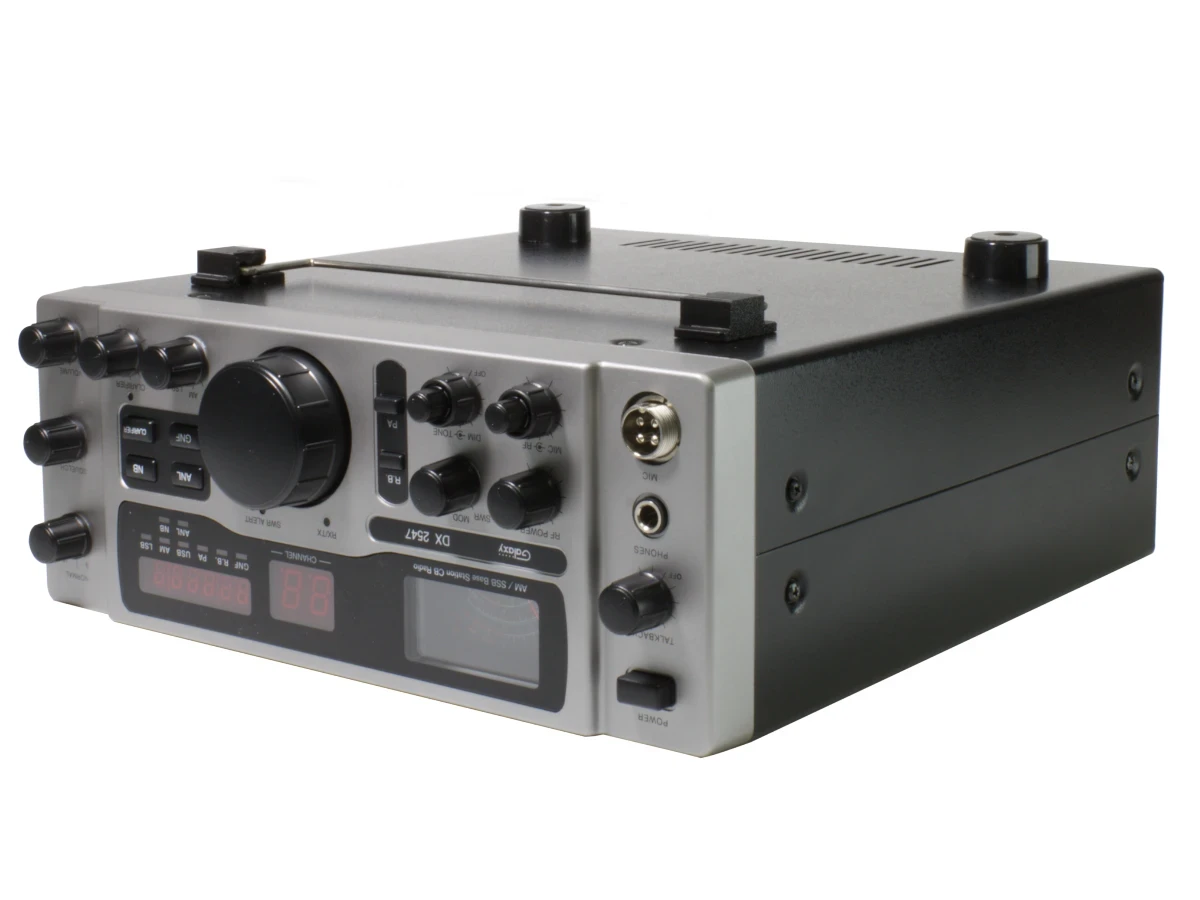

The Galaxy DX-2547 was updated in the fall of 2024 and now has a metal arm that can out to prop the radio up. Previously they used plastic legs that weren't as durable.

Here it is! Compact yet full featured, the Galaxy DX 2547 CB base station radio comes pre-equipped with sideband and skip-shooting features with a bonus of being dual purpose as either an indoor Base Station CB or as a regular mobile radio.

Imagine using the DX2547 in your vehicle as a regular full-featured mobile CB complete with features like instant emergency channel 9 and a PA speaker jack, then when you get to your destination plug it into your home AC outlet and base antenna and enjoy the full-featured benefits of a standard base radio.

Small enough to act as a mobile, powerful and featured enough to be an excellent base. This is an enthusiasts dream radio!

DX2547 Features

  • AM and SSB ModesOperate On All CB Channels Including Single Sideband (SSB)
  • Operates on both AC and DCFlip a switch on the back of the radio for either home or mobile use.
  • Six Digit Frequency CounterSee exactly what frequency you are on.
  • Adjustable TalkbackAllows You To Monitor Your Transmit Audio (your voice)
  • SWR Alert LEDIndicates A Problem With Your Antenna System
  • SWR MeterUse To Test Your Antenna System
  • Large MeterDisplays Transmit, Receive Signals. SWR Measuring & Modulation
  • Normal - 9/19 SwitchQuickly Switch Between Your Operating Channel and 9 or 19
  • Roger BeepEnd Of Transmission Beep When You Are Done Talking
  • Additional Features
  • Front Mounted Headphone Jack

DX2547 Technical Specifications

ModelDX 2547
Frequency Range26.965 - 27.405 MHz
Emission ModesAM / USB / LSB
Frequency ControlPhase Lock Loop (PLL) Synthesizer
Frequency Tolerance0.005%
Frequency Stability0.001%
Operating Temperature Range-22 ° - 122 ° F
MicrophoneDynamic PTT. 50 Ohms
Input Voltage (DC / AC Selectable)13.8V DC / 110V AC 60 Hz
Current Drain - Transmit (AM full mod)< 3.5A
Current Drain - Receive (Squelched)< 0.5A
Current Drain - Receive (Max audio output)< 1A
Antenna ConnectorUHF; SO239
Dimensions4-3/4" H x 11-1/4" W x 13-1/2" D
Weight12 lb


Transmitter
RF Transmit ModesAM/SSB
ModulationHigh and Low level Class B, Amplitude Modulation - AM and SSB
Spurious Emissions-60 dB
Carrier Suppression-60 dB
Audio Frequency Response300 to 2500 Hz
Antenna Impedance50 Ohms
Output IndicatorsMeter shows relative signal strength, RF output power, SWR and AM Modulation level. Transmit LED glows red when transmitter is in operation.


Receiver
Sensitivity for 10dB S/N (AM/ SSB)< 0.5 mV / < 0.15 mV
IF FrequencyAM - 10.695 MHz 1st IF, 455 KHz 2nd IF
Image Rejection-50 dB
Adjacent Channel Selectivity-60 dB
RF Gain Control45 dB adjustable for optimum signal reception
Automatic Gain Control (AGC) Figure of Merit100 mV for 10 dB Change in Audio Output
SquelchAdjustable; threshold less than 0.5 mV
Noise BlankerRF type
Audio Output Power2.5W @ 10% THD
Audio Frequency Response300 to 2500 Hz
Built-in Speaker8 Ohms, 4 Watts
External Speaker (Not Supplied)8 Ohms, 4 Watts
How does the clarifier work?

The clarifier has an on/off toggle button which can disable the clarifier from working. Push the clarifier button to enable the use of the clarifier knob. When turning the knob, you will be adjusting the receiver frequency only, the transmit frequency is unchanged regardless of where this knob is set.

Galaxy DX2547 Reviews

Overall rating
4.3
  • 5
    5
  • 4
  • 3
  • 2
  • 1
    1
Write a Review
David H. Verified Buyer
1 year ago
Doesnt work for longer than 2 weeks!
Ordered unit peaked and tuned and recieved it quickly, set it up with A99 base antenna with ground plane and it wouldn't turn on. Walcott had me return it to them free of charge and repaired it and sent it back free of charge. (Walcott is great!!!) Got it set up and worked for 2 weeks. Now doing the same thing. Unit wont turn on. It cycles on/off every second or so when you press the power button. Waiting to hear back from Walcott Radio... I have to say so far I am not impressed with the radio. I am impressed with Walcott Radio. Hopefully we can get this resolved.
Raymond B.
13 years ago
This is a awesome radio, but I am not an expert on all the radios out there. I just know this radio works for me. Once again Walcott has done a perfect job, everything came as orderd and showed up a day early. I got the peak and tune and the Antron 99 antenna. I just have the antenna hooked up to the cloths line for now untill i get the stuff i need for the chimny. There was no need to adjust the SWR it was 1.4 on channel 1 and all the way down 1.0 on 40, I am not going to mess with it. A very nice radio and antenna, I was talking skip right away. It will be better once the antenna is on the roof. The large Channel knob is nice feels good going thru the channels.
Joseph T. Verified Buyer
14 years ago
Nice Looking, Powerful, Lots of featuresnot enough time to talk on it!I just received my new Galaxy Base station the other day from WalCott CB and I have to tell you that I am just so pleased! I haven't used a CB since I was around 18 and I am now 38 but man, This thing made me feel like I never left the band.

I rent an apartment so I also bought the indoor base antenna and even with an indoor antenna this this rocks !

I also got the "peak and tune" which was also WELL worth the money!

I wish there was more base stations on the market but this ohe is cool for sure.

The one thing I did notice is that when I used the mini base indoor antenna, I need to turn the RF power all the way down because the radio is so strong and powerful.

I am actually on Walcotts website right now to by myself a nice A99 base antenna because I just have to know that this base station kicks but so much, I mean I am amazed how far and awesome this radio is with this small antenna,....I can just imagine if I get that A99 :)

Anyhow - If your looking for a new base radio, This thing is 10000% worth the money.

It has an awesome meter too that does SWR, Power and MOD , RF. NB, Its just packed with features and also can run on 12v! WHoot, thats right when I go mobile I can take my sweet rig!

Thanks for reading, I am on the side :)

Joseph
Clyde P. Verified Buyer
16 years ago
I ordered this with peak/tune and it walks and talks! I even hooked it up in my van for awhile to see how it faired and it actually works better there than my regular mobile unit. I also ordered it with the Astatic D104-M6B and had to take that off and use the stock mic as it had more than enough modulation without the Astatic so I used the D104-M6B on my regular mobile unit.
michael f. Verified Buyer
17 years ago
a fine unit - geting good on the air reports
the people on chan. like the big radio sound
George L. Verified Buyer
17 years ago
love it with a peak/tune. Was packaged well, and arrived very fast.Thanks Walcott!.
