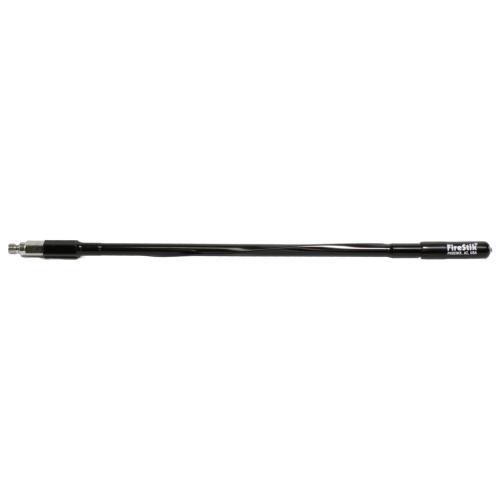

The core material is solid 3/8" (9.5cm) fiber-rich, custom blended, fiberglass. Each is hand wound with double insulated 19 gauge copper wire. Our 3/8"-24 threaded base will fit all common mounts and accessories. Both antennas are covered with a static reducing, water-tight sleeve containing UV and pigment stabilizers. A vinyl cap is provided to protect the tuning mechanism from the elements.
Like all transmitting antennas, these antennas work best when mounted over sufficient ground plane. The versitility of the tuning screw design offers a wide tuning range. The lowest frequency is achieved by having the tuning screw in its highest lockable position and the vinyl cap installed. Likewise, the highest frequency of the antenna can be found with both the vinyl cap and tuning mechanism removed.
During design testing we were able to achieve resonance from 135-168MHz without exceeding our maximum threshhold SWR of 2.0:1. In the 144-148MHz band sub 1.5:1 SWR was easily achieved.
Power Output (W): 100
