Astatic 600 SWR/ Power Meter

Astatic 600 SWR/ Power Meter

by: Astatic
  • Astatic 600 SWR/ Power Meter
  • Heavy Duty SWR/ Power Meter Measures Up to 5000 Watts In 3 Ranges
  • 3 Separate Easy-to-Read Meters for Simultaneous Examining of all Functions
  • Lighted Meter Face for Easy Readability
  • For Mobile, Bench or Base Station Installation
  • Frequency Range: 25-30MHz Impedance: 50 Ohms
  • SWR 10% / RF Power 7% on 0-10W / 10% on 100W & 5000W Scales / Mod 10%
ASTATIC600 image - ASTATIC600-1.jpg

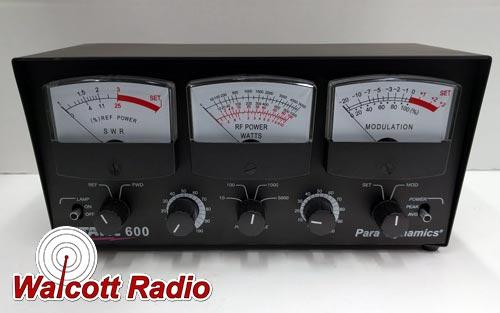

ASTATIC600 image - ASTATIC600-2.jpg

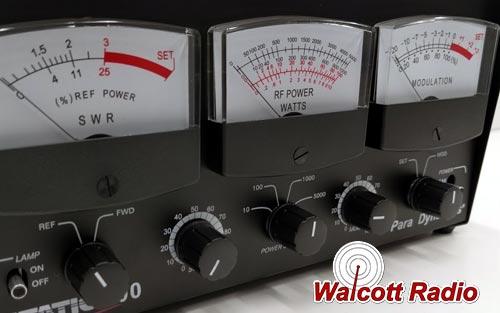

ASTATIC600 image - ASTATIC600-3.jpg
ASTATIC600 image - ASTATIC600-4.jpg
$99.95

DISCONTINUED

Sorry, the ASTATIC600 is discontinued.

Loading suggested items...
Loading ...

One of the best base station multi-meters you can buy for under $150. The Astatic 600 has separate meters for SWR, RF Power (both Peak and RMS), and a Modulation Percentage meter.

Operates between 25~30 MHz, which includes CB, 10 Meters, and part of 12 meter frequencies.

Measures up to 5,000 Watts PeP.

Optionally connect the included power cord to a 12V power source to light up the meter displays.

Features

Wattage Scales
10 Watts, 100 Watts, 1,000 Watts, 5,000 Watts
SWR Accuracy
+/- 10%
Frequency Range
25-30 MHz
Impedance
50 Ohm
RF Power Accuracy
+/- 7% on 0-10W, +/- 10% on 100~5,000 Watt Setting
Modulation % Accuracy
10%
Dimensions
10" Wide x 5" Tall x 5" Deep
