Name: Alinco DRB185T
Brand: Alinco
SKU: DRB185T
Price: 189.9500 USD
Availability: Discontinued

Alinco DRB185T

Hassle-Free Warranty & Easy Returns

At Walcott Radio, we want you to shop with confidence! That's why we offer a straightforward warranty and a stress-free return policy to ensure you're satisfied with your purchase.

Easy Returns - No Worries!

Changed your mind? No problem! Return unused, unopened, and unmodified products within 30 days for a refund.
Some items like batteries, used/refurbished products, and custom modifications are non-refundable.

Reliable Warranty - We've Got You Covered

Enjoy 90 days of coverage against manufacturer defects.
If something isn't right, we'll help troubleshoot, and if needed, we will arrange for inspection, repair, or replacement

Customer-Focused Support

Need Help? Our experts are just a phone call or email away!
We work hard to make sure every product performs at its best - because we care about your experience.

For full details, check out our Warranty & Return Policy

CB Radio Technicians since 1986

Unlock the full potential of your radio with our in-house radio technican upgrade services. Don't leave any potential for performance on the table, and ensure your new radio equipment has been thoroughly tested and verified to operate at it's maximum potential.

Improved Range & Clarity

Expert Calibration for Peak Performance

Optimized for Ehanced Usability

Speak directly with the radio Technician for any operation quests

Walcott Radio 30-Day Hassle-Free Returns

Discontinued

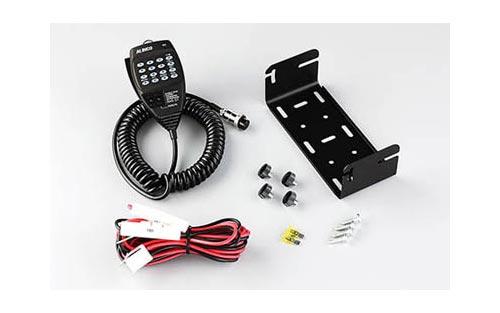

New! High powered Alinco DR B185 VHF radio covering the 2-meter band with 85 watts. Mounting hardware, power cord, and DTMF microphone. Start exploring the 2 meter band with his powerful unit today!

DRB185T Features

Features of DR-B185HT/HE

Scanning functions including DCS/CTCSS/Priority/Group and timer/busy modes.

Wide and Narrow FM modes

39 tone CTCSS/DCS/2-tone encode and decode

HIGH/LOW power setting

Offset direction and frequency variable

Keypad lockout/Reverse function

Alphanumeric tag/Display dimmer

Automatic illumination brightness

TIME-OUT-TIMER?ABCLO and AUTO POWER OFF

TONE-BURST tones/AUTO-DIALER

DTMF TX speed, pause and monitoring features

S-METER squelch

Multifunctional microphone with keypads (HT Only)

Cable cloning and Free utility software (an optional PC cable required)

DRB185T Technical Specifications

DR-B185HE

TX:144.000 - 147.995MHz

RX:136.000 - 173.995MHz

TX/RX:144.000 - 145.995MHz

Operating mode 16k0F3E (FM/wide)/11k0F3E (FM/narrow)

Antenna impedance 50ohm unbalanced

Frequency stability +/- 2.5ppm

Power supply requirement 13.8V DC +/- 15% (11.7 to 15.8V DC)

Ground method Negative ground

Current drain Receiver

1.0A (max.) / Transmit

20A

Operating temperature -10digC to +60digC (+14digF to 140digF)

Dimensions (w/o projection) 164 x 44 x 183.6 mm

6.44 x 1.73 x 7.21 inches

Weight 1.5Kgs / 3.31lbs

Transmitter

Power Output 85W High / 5W Low

Modulation system FM

Reactance modulation

Spurious emission Less than -50dB

Unwanted sideband More than 50dB(1KHz)

Maximum FM deviation +/- 2.5 KHz

Receiver

Receive system Double-conversion superheterodyne

Sensitivity Wide

Less than 0.25uV, Narrow

Less than 0.25uV

Intermediate frequency 1st IF 45.1MHz, 2nd IF 450 KHz

Adjacent Channel Selectivity Wide

More than 70dB, Narrow

More than 60dB

Spurious and image rejection ratio More than 65dB

Audio output power More than 2.0W(8ohm 10%THD)

Alinco DRB185T Reviews

Alinco DR-B185HT VHF Radio 144 - 148 MHz 85 Watts
