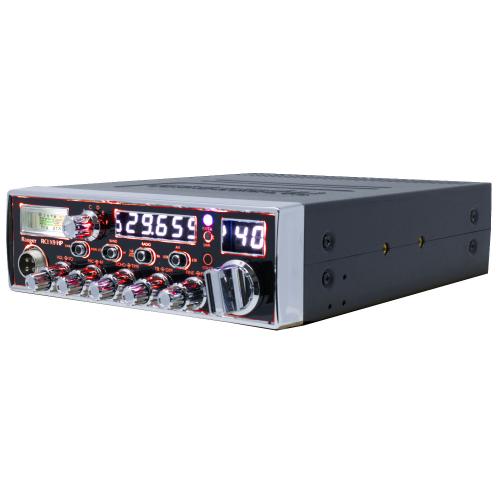

Compatible with ANY semi truck radio cutout! Unlike other compact 10 meter radios, the X9HP uses an all new internal fan design. This means there are no heatsinks sticking out of the back of the radio. Rather, on the bottom of the case there are two 3.17MM fans blowing out of the bottom. Ideally, you will want space below the radio for the fans to exhaust heat.
Massive output power with a 70 watt carrier and 200 watts modulation, this tiny beast will get you heard over long distance. Ranger has managed to pack all of the popular features most people want in a modern 10 meter radio. SWR meter with auto-calibration. Color changing faceplate with soft LED lights that are dimmable. Single sideband. Lots of power. Echo and talkback. And you get all of this while still only measuring in at 7.25" wide!
Due to the high power output, this radio requires at least a 25A power source. In vehicles, this means you need to wire this radio directly to the batteries. The stock power source provided is not sufficient.
Modes: am, usb, lsb, pa
Power Output (W): 200
Echo: Yes
Talkback: Yes
Frequency Counter: Yes
SWR Meter: Yes
Case Color: Black
Clarifier: RX Clarifier
Receive Filters: NB/ANL
