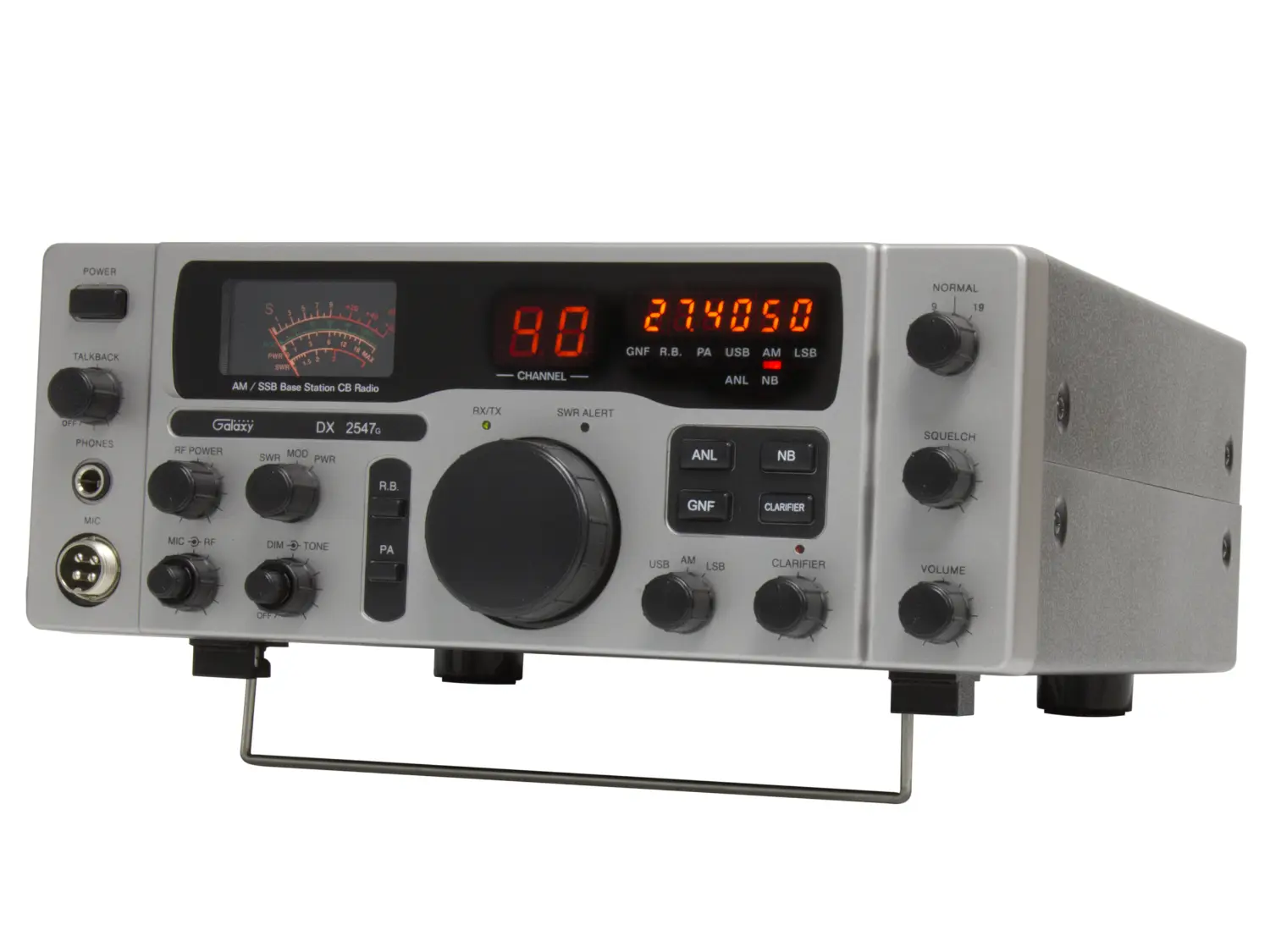

New edition of the popular DX-2547 40 channel CB base radio that includes orange LED display lights. Smaller and lighter than your standard base station, the 2547 is a great choice for use at home or even as a mobile radio thanks to the switchable AC / DC power supply. Usable on AM, USB, LSB, and PA modes and includes a 6 digit frequency counter and clarifier for fine tuning frequencies for single sideband. The intuitive layout makes it convenient and easy to use without hidden functions or menus to scroll through.
R-DX2547G Features
- AM and SSB ModesOperate On All CB Channels Including Single Sideband (SSB)
- Operates on both AC and DCFlip a switch on the back of the radio for either home or mobile use.
- Six Digit Frequency CounterSee exactly what frequency you are on.
- Adjustable TalkbackAllows You To Monitor Your Transmit Audio (your voice)
- SWR Alert LEDIndicates A Problem With Your Antenna System
- SWR MeterUse To Test Your Antenna System
- Large MeterDisplays Transmit, Receive Signals. SWR Measuring & Modulation
- Normal - 9/19 SwitchQuickly Switch Between Your Operating Channel and 9 or 19
- Roger BeepEnd Of Transmission Beep When You Are Done Talking
- Additional Features
- Orange Display Lights
- Front Mounted Headphone Jack
| Model | DX 2547-G |
|---|---|
| Frequency Range | 26.965 - 27.405 MHz |
| Emission Modes | AM / USB / LSB |
| Frequency Control | Phase Lock Loop (PLL) Synthesizer |
| Frequency Tolerance | 0.005% |
| Frequency Stability | 0.001% |
| Operating Temperature Range | -22 ° - 122 ° F |
| Microphone | Dynamic PTT. 50 Ohms |
| Input Voltage (DC / AC Selectable) | 13.8V DC / 110V AC 60 Hz |
| Current Drain - Transmit (AM full mod) | < 3.5A |
| Current Drain - Receive (Squelched) | < 0.5A |
| Current Drain - Receive (Max audio output) | < 1A |
| Antenna Connector | UHF; SO239 |
| Dimensions | 4-3/4" H x 11-1/4" W x 13-1/2" D |
| Weight | 12 lb |
| Transmitter | |
| RF Transmit Modes | AM/SSB |
| Modulation | High and Low level Class B, Amplitude Modulation - AM and SSB |
| Spurious Emissions | -60 dB |
| Carrier Suppression | -60 dB |
| Audio Frequency Response | 300 to 2500 Hz |
| Antenna Impedance | 50 Ohms |
| Output Indicators | Meter shows relative signal strength, RF output power, SWR and AM Modulation level. Transmit LED glows red when transmitter is in operation. |
| Receiver | |
| Sensitivity for 10dB S/N (AM/ SSB) | < 0.5 mV / < 0.15 mV |
| IF Frequency | AM - 10.695 MHz 1st IF, 455 KHz 2nd IF |
| Image Rejection | -50 dB |
| Adjacent Channel Selectivity | -60 dB |
| RF Gain Control | 45 dB adjustable for optimum signal reception |
| Automatic Gain Control (AGC) Figure of Merit | 100 mV for 10 dB Change in Audio Output |
| Squelch | Adjustable; threshold less than 0.5 mV |
| Noise Blanker | RF type |
| Audio Output Power | 2.5W @ 10% THD |
| Audio Frequency Response | 300 to 2500 Hz |
| Built-in Speaker | 8 Ohms, 4 Watts |
| External Speaker (Not Supplied) | 8 Ohms, 4 Watts |
