George FCC | |
---|---|
Modes | AM / FM / LSB / USB / WX / PA |
Number of Channels | 40 Channels per band |
Frequency Range | 26.965 MHz - 27.405 MHz |
Power Supply | 13.8V |
Microphone Connection | 6 Pin |
CTCSS / DCS | 38 CTCSS tones / 104 DCS |
Weather Channels | 7 |
Carrier Power | 4 Watts AM/ 4 Watts FM / 12 Watts PEP USB & LSB |
Dimensions (W x D x H) | 7-1/4" x 6-3/4" x 2-1/4" |
Weight | 2.2 lbs |
What's in the Box | Radio, microphone, fused power cord, mounting bracket and knobs, mic holder, owner's manual |

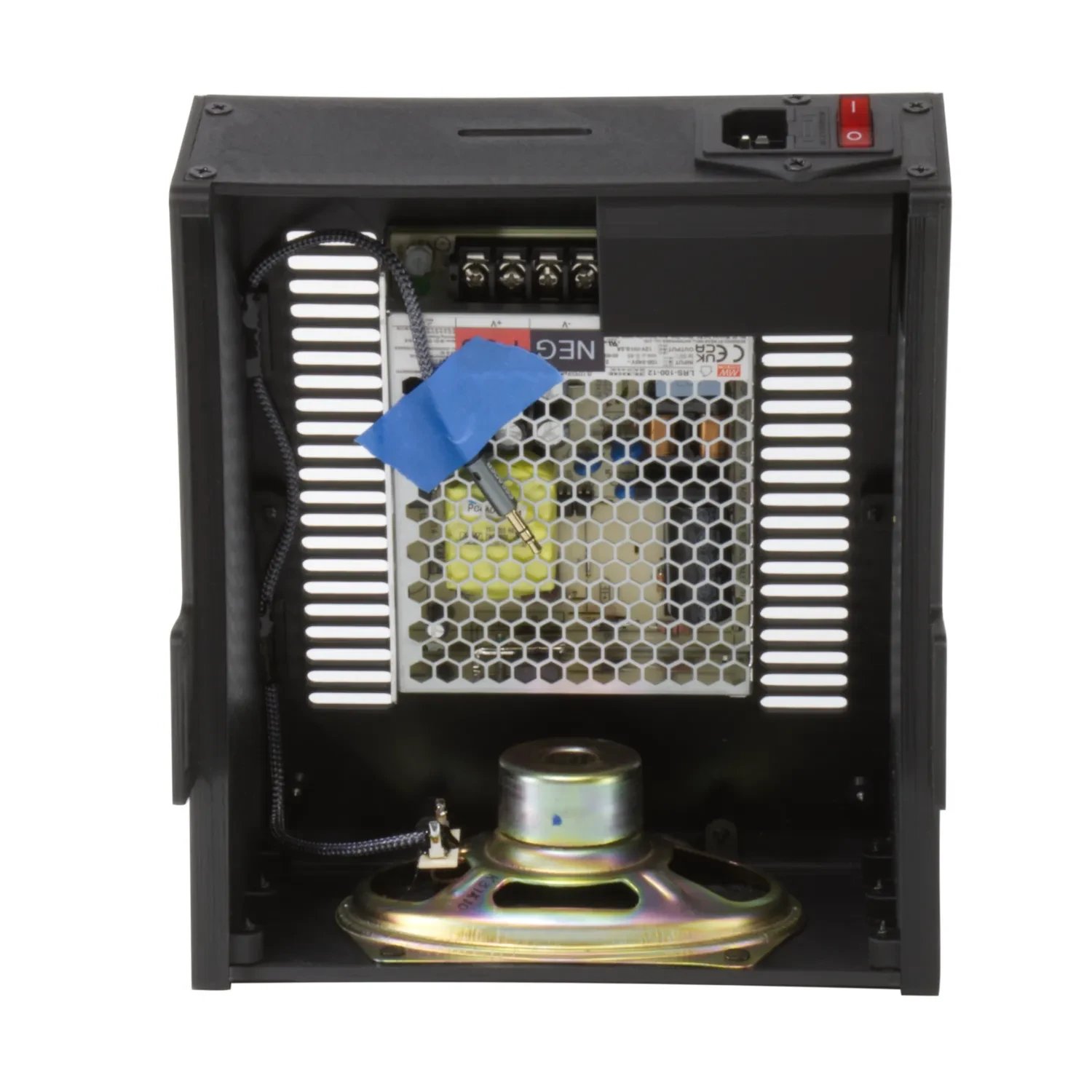

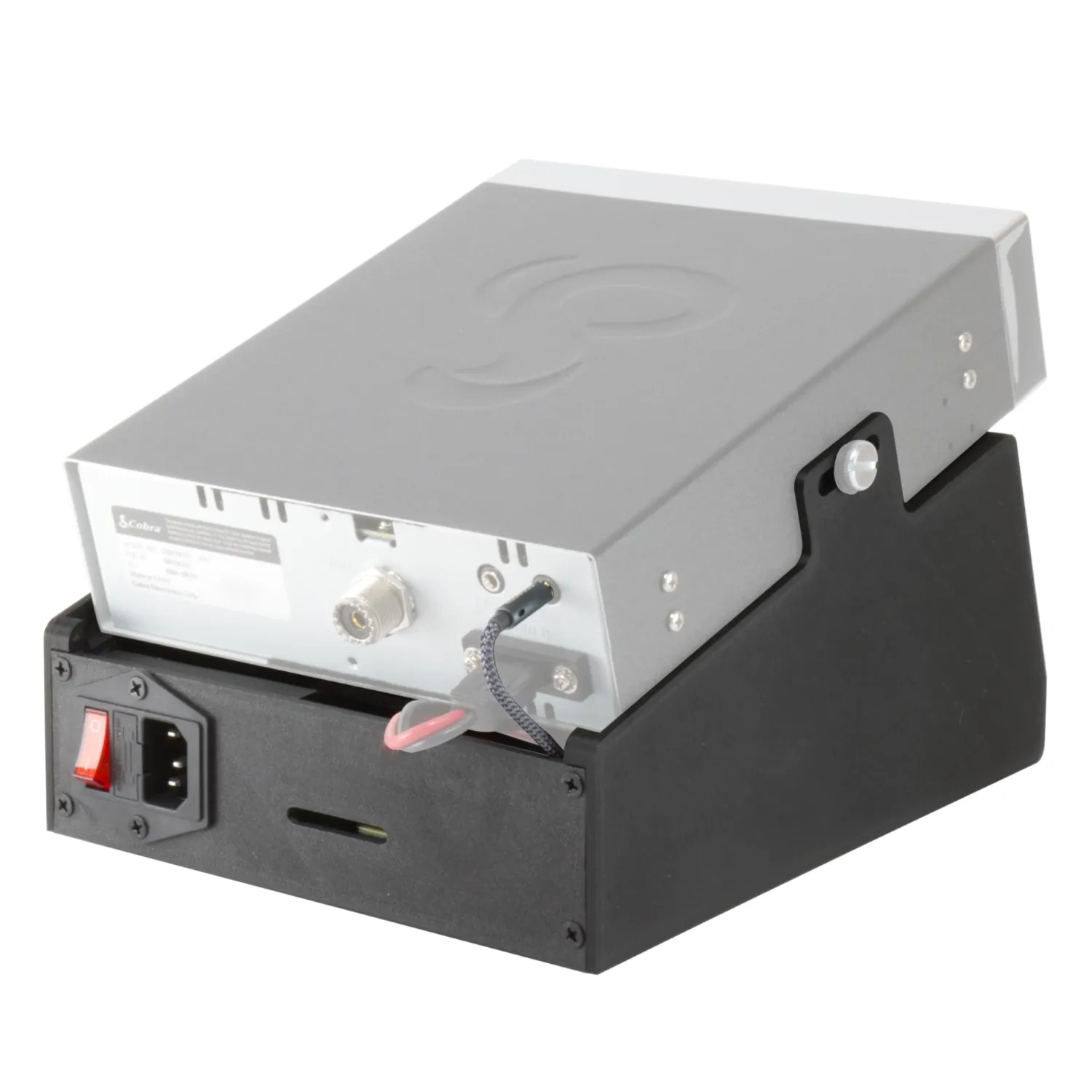

K-624 Base Unit | |
Dimensions (W x D x H) | 9" x 7.56" x 4.31" |
DC Voltage | 12V (Adjusted to 14.1V) |
Rated Current | 8.5A |
Rated Power | 102W |
Protection | Overload, and Voltage Protection |
Speaker Size | 3" x 5" |
Speaker Power Handling | 4W RMS | 8W Max |
Impedance | 8Ω |
Frequency Response | 150 - 15.000 Hz |
Material | PLA (Polylactic Acid) |
Temperature Range | 0°F - 120° F |
Humidity | 20-90% Non-condensing |
A-99 Antenna | |
Length | 18ft |
Power Handling | 2000 Watts |
Wavelength | 1/2 Wave |
Gain | 3.2dBI |
Frequency Coverage | 10 Meter & 11 Meter (CB) |
Mounting | 2 U-Bolts |
Coax Cable | |
Length | 50' |
Type | RG8U |
Connectors | PL-259 |
