Alinco DJ500T Dual Band 144 - 148 MHz and 420 - 450 MHz FM Handheld Ham Radio

by: Alinco
Alinco DJ500T Dual Band 144 - 148 MHz and 420 - 450 MHz FM Handheld Ham Radio

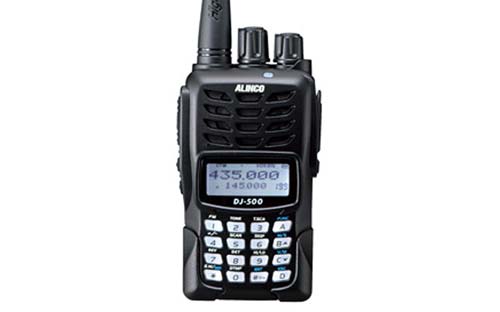

DJ500T image - DJ500T.jpg
DJ500T image - DJ500T_accessories.jpg
Alinco DJ500T Dual Band 144 - 148 MHz and 420 - 450 MHz FM Handheld Ham Radio
$129.95

In Stock

Item #: DJ500T

Full of advanced features, the DJ-500 offers landmobile-grade operation
and powerful 5W output. CTCSS, DTMF, DCS and 5-tones are standard,
along with a variety of tone bursts for repeater access or selective calling.
Convenience features include direct frequency input, alphanumeric channel labels and 200 memory channels that can each store operating parameters.
A Li-Ion battery pack and a stand charger are standard, adding power and convenience. The DJ-500 looks simple, but remember, looks can be deceiving! The DJ-500 places one of the world's most advanced transceivers at your command, at ALINCO's affordable price!

Features

Large, dot-matrix, 3 color-selectable display and keypad
Semi-Duplex dual-band, V/V-U/U and FM broadcast receiver
200 memory channels, any mix of VHF/UHF
Internal VOX
Alphanumeric channel labels
Direct frequency input from keypad
Landmobile-grade signaling features
Variety of scanning modes
IP54 dust/splash proof, MIL-SPEC vibration/shock compliant
Wide and narrow FM TX/RX1
12Vdc input using an optional cigar-socket adapter.
Wire cloning capability

Specifications, Weight, Dimensions

Frequency range
[TX] 144-148MHz. 420-450MHz
[RX] 136-174MHz, 400-480MHz
Modulation
F3E(16K0F3E / 11K0F3E / RX only WFM)
Frequency step
2.5, 5, 6.25, 8.33, 10, 12.5, 20, 25, 30 and 50 KHz
Memory channel
200 memory channels in total + 1 call channel/band + 1 Repeater-Access parameter memory/band
Antenna impedance
50 ohm unbalanced
Frequency stability
�2.5ppm
Supply voltage
7.4V (Battery)
Current consumption
(Typical value) 1400mA TX / 300mA receive at Max audio output 70mA squelched
Temperature range
-4�F~131�F (-20�C ~ +55�C)
Ground
Negative
Dimensions
2.32W�3.86H�1.38D in (59.0W�98.0H�35.0D mm)
Weight
Approx. 227g or 8.01oz inclusive of battery pack and antenna
Power output
Approx.5 / 2.5 / 1W
Modulation
Variable reactance FM
Spurious emission
-60dB or less
Max. deviation
FM
System
Direct-conversion
Sensitivity
Wide -12dBu / Narrow -9dBu
Intermediate frequency
1st IF 38.85MHz 2nd IF 450kHz
Selectivity
-6dB
-60dB
Wide 30kHz / Narrow 24kHz or less
AF output
1W (10% distortion)

What's Included

  • EBP-87 Li-ion Battery Pack 1500mAh 7.4V
  • EDC-189 Li-Ion Rapid Charger
  • EDC-146 AC Adapter
  • EA-228 Antenna
  • EBC-34 Beltclip
  • User Manual
