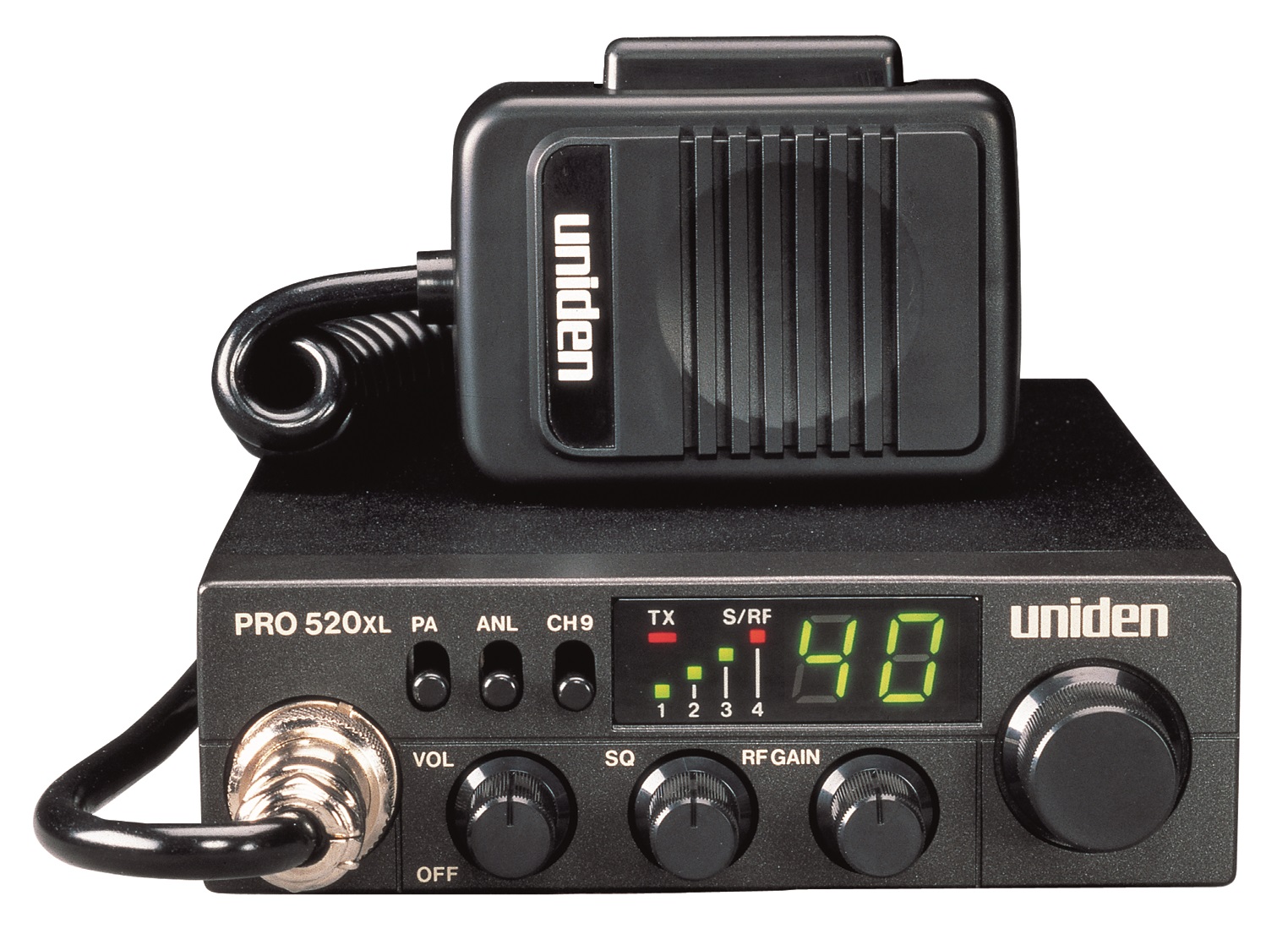

Uniden PRO520XL Compact CB Radio with PA Jack

PRO520XL - Same Size As The Pro510, But Added Features of RF Gain, Instant Channel 9 Switch. PA Speaker ready.

  • Compact CB
  • Instant Channel 9 Switch
  • RF Gain Control
  • PA Speaker capable


Call to order PRO520XL

Item #: PRO520XL

In Stock

Customers Also Purchased View all

Boost your radios power up 50% or more.
12-Volt Power Plug with Posts
Talkback Modification - Hear your own voice
3 Foot Magnetic CB Radio Antenna with 17 Ft Coax

Uniden PRO520XL Overview

This is the big brother to the Uniden 510XL. All of the great features that you love about that radio are also found in this radio. Once again, it’s compact and able to fit into those tight little cubby holes found in or above dashes. It has squelch and ANL (Automatic Noise Limiter) filtering to reduce the background engine noise from inferring with your conversation. It also has an option for PA mode - which allows for public address horn speaker use typically mounted under the hood of your vehicle. No matter which way you transmit, your voice will be heard loud and clear. Also, if you find yourself in a bit of a jam, flip the button for Instant emergency Channel 9 access. The Uniden Pro520XL will help get the word out that you need help without any unnecessary fumbling of the dials.

Uniden PRO520XL Features

  • 40 channel operationFull 40 Citizen Band channel operation
  • PA speaker jackSelect the Public Address mode if an external PA speaker is connected.
  • RF gain controlPull in distant signals with RF Gain, fully controlled gain gives you greater range of communications.
  • Front mounted micAllows CB unit to mount flush in dash.
  • ANL switchReduces engine noise and background interference.
  • TX LED lightIndicates when unit is transmitting.
  • Squelch controlAdjusts the threshold of the receiver to eliminate any background noise.
  • S/RF LED meterAn accurate 4-segment LED meter displays the signal strength of both the transmitter and receiver.

Uniden PRO520XL Specifications

  • ModesAM
  • Frequency Range26.965 ~ 27.405 MHz
  • Length6 5/8" from back of case to bezel
  • Length7 3/4" from antenna jack to control knobs
  • Width4 1/2"
  • Height1 3/8"
  • Current Draw2 Amp
  • Microphone Pin-Out4-Pin Electret
  • Power ConnectionMolded Red/Black
